High Precision Laser Cutting Machine

Precision Laser Cutting Machine adopts fully closed optical path structure, imported lasers and optics, reinforced welded bed, fast cutting speed, stable operation, high degree of automation and high production efficiency.
Product Model: ST-FC6060/ST-FC1390/ST-FC2010
Laser power: 1000W/1500W/2000W/3000W/4000W
Working area: 600*600/1300*900/2000*1000mm (customizable)
Availability:
Quantity:

PDF Export

Details       Product Parameters       Samples       Video

High Precision Laser Cutting Machine features-Suntop


Product Introduction

In modern manufacturing, precision processing and high efficiency are key factors in improving competitiveness. The emergence of laser cutting technology just meets this demand. With its high precision, high speed and flexibility, laser cutting has gradually become the preferred method for processing various materials, and is widely used in many fields such as industry, electronics, automobiles, aerospace and art.


Precision laser cutting machine is a device designed specifically for high-precision cutting needs, which uses high-energy laser beams to cut materials. It can not only achieve conventional cutting tasks, but also perform micro-cutting, engraving and marking according to needs. The main features of precision laser cutting machines include high cutting accuracy, applicability to a variety of materials, high automation and flexible operation.


In the current competitive market environment, the importance of precision laser cutting machines is becoming increasingly prominent. By adopting this technology, enterprises can improve production efficiency while enhancing product design flexibility and complexity to meet the diverse needs of customers. In addition, laser cutting technology helps to achieve higher material utilization and production safety, and has a positive effect on the sustainable development of enterprises. Therefore, precision laser cutting machines are not only a technological innovation in the manufacturing industry, but also an important force to promote the progress of the industry.

Product Technical Features

Precision Laser Cutting Machine is an advanced cutting machine widely used in manufacturing in various industries. Its efficient and precise cutting ability is favored by more and more enterprises.


1. Fully enclosed design, green glass cover window can filter the laser beam, with laser protection function, in line with European standards.

2. Adopting the famous Swiss brand Raytools laser cutting head, equipped with dynamic auto focus system, which can keep the same distance between the metal sheet and the laser head to achieve accurate cutting effect.

3. Adopts imported servo motor and precision guide rail to ensure high cutting precision, good stability and longer life.

4. With red light indication and pre-running function to ensure the fiber laser cutting machine can find the accurate cutting position.

5. With automatic oil filling function, each magnetic stripe has an oil pipe, press the oil filling switch to automatically lubricate, oil filling once every two months.

6. Specialized software can design or process graphics or text in real time. Flexible and easy to operate.

Product Details
High Precision Laser Cutting Machine Fiber laser source

Fiber laser source

China first brand RAYCU fiber laser, the highest cost performance, best quality and after-sales service (Suntop use the new and original laser).

High Precision Laser Cutting Machine Laser cutting head

Laser cutting head

American import laser cutting head with dynamic autofocus function, can keep same distance according to metal plate and cutting head during cutting.

High Precision Laser Cutting Machine Work platform

Work platform

The toolbar design facilitates the placement and positioning of small workpieces and effectively prevents deformation of the table due to heat.

High Precision Laser Cutting Machine Cutting protection window

Cutting protection window

The green glass cover window can filter the laser beam, does not hurt the eyes, has no peculiar smell, and is environmentally friendly and beautiful.

High Precision Laser Cutting Machine Computer control system

Computer control system

There is a drawer under the workbench, after the metal sheet is cut, the small pieces fall into the drawer for easy collection.

High Precision Laser Cutting Machine Imported servo motor and drive system

Imported servo motor and drive system

Extremely accurate positioning makes the mobile positioning mechanism run smoothly. Reliable and maintenance-free.

High Precision Laser Cutting Machine Double rack

Double rack

Double high precision ball screw drive system.

High Precision Laser Cutting Machine Water chiller

Water chiller

Increase the stability of cutting power, make cutting power more stable and improve work efficiency.

High Precision Laser Cutting Machine Drawer

Drawer

There is a drawer under the workbench, after the metal sheet is cut, the small pieces fall into the drawer for easy collection.

High Precision Laser Cutting Machine Control system

Control system

With NC Studio control system, it has powerful editing functions to meet a wide range of cutting needs.

Advantages of Precision Laser Cutting Machine

Precision laser cutting machines have several significant advantages that make them increasingly popular in modern manufacturing.


1. High-precision cutting

Laser cutting machines are able to achieve micron-level cutting accuracy, ensuring that the size and shape of the product meet the design requirements. This high precision makes laser cutting particularly important in industries that require delicate processes, such as electronics, aerospace, and medical devices.


2. Fast cutting speed

Laser cutting machines have extremely fast cutting speeds, which can usually significantly shorten production cycles. This allows companies to complete a large number of cutting tasks in a short period of time, improving production efficiency and the ability to respond to market demand.


3. Applicable to a variety of materials

Precision laser cutting machines are able to cut a variety of metal materials (such as stainless steel, aluminum, and copper). This wide range of material adaptability allows laser cutting equipment to play a role in multiple industries.


4. Low heat-affected zone

The heat-affected zone during laser cutting is relatively small, so deformation and thermal damage to the material during cutting are greatly reduced. This feature not only improves cutting quality, but also makes subsequent processing and handling simpler.


5. Automated control

Modern precision laser cutting machines are usually equipped with advanced CNC systems that can achieve automatic programming and real-time monitoring. This makes the operation easy, the consistency and repeatability of the product are guaranteed, and the errors caused by manual operation are reduced.


6. Low material waste

Laser cutting has a very high material utilization rate, can accurately cut complex shapes, and minimize material waste. This is especially important for companies that are sensitive to material costs.


7. Environmentally friendly characteristics

Laser cutting usually does not require the use of other chemicals, and produces less waste during cutting, so it is more environmentally friendly. At the same time, due to the relatively low energy consumption during the cutting process, it is also in line with the current trend of green manufacturing.


8. Easy maintenance

Modern laser cutting machines adopt modular design, and daily maintenance and maintenance are relatively simple, which reduces the downtime of the equipment and ensures the continuity of production.


Overall, precision laser cutting machines provide strong technical support for modern production with their high efficiency, high precision and versatility, which can effectively enhance the competitiveness of enterprises. Click here to contact Suntop Laser now for more information.

Product Specifications

Model

ST-FC6060/ST-FC1390/ST-FC2010

Table Max. cutting size

600*600/1300*900mm/2000*1000mm

Laser power

1000W/1500W/2000W/3000W/4000W

Cutting thickness

0.5-20mm (depend on the actual laser power)

Repeat positioning accuracy

±0.01mm/m

Maximum operating speed

40m/min

Laser type

Fiber Laser

Laser source

Raycus Brand (MAX, IPG can be choose)

Cooling mode

Water Cooling

Maximum acceleration

0.5G

Laser wavelength

1064nm

Transmission

High precision screw guide transmission

Graphic format supported

AI, PLT, DXF, BMP, DST, DWG, DXP

Working voltage

220V±10%, 50-60Hz / 380V±10%, 50-60HZ

Applicable material

All metal (stainless steel, brass, aluminum, titanium steel, etc.)

Machine weight

1300KG (depending on actual model)

Machine dimension (L*W*H)

1650*1360*1880mm (depending on actual model)

What Materials Can be Cut?

Mainly suitable for carbon steel, stainless steel, copper, aluminum and alloys, titanium and alloys and other metal materials.

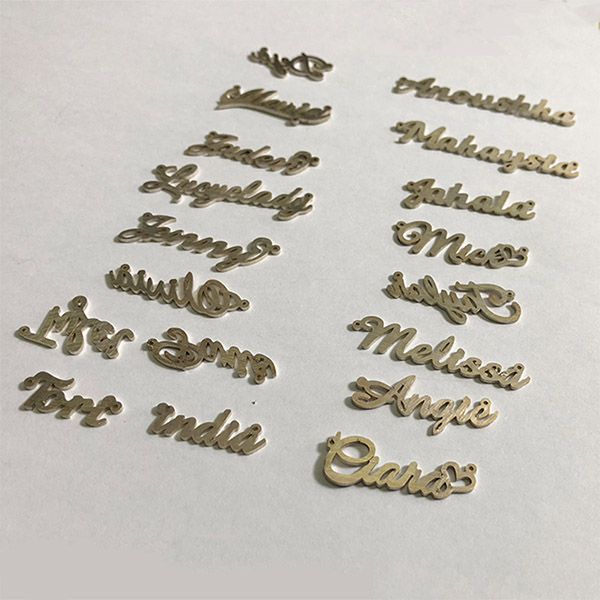

High Precision Laser Cutting Machine samples-Suntop

What Are Laser Cutting Used For?

Laser cutting machines are widely used in many fields due to their high efficiency, precision and wide range of applications. The following are some of the main application areas:


Metal processing-Suntop

Metal processing

Fiber laser cutting machine is widely used in metal processing industry, especially suitable for cutting all kinds of metal materials, including: stainless steel, carbon steel, aluminum alloy, copper, brass and other non-ferrous metals.

Sheet metal manufacturing-Suntop

Sheet metal manufacturing

Fiber laser cutting machine is very popular in sheet metal processing, can achieve high efficiency plate cutting, suitable for manufacturing: industrial equipment shell, sheet metal chassis, structural parts and so on.

Automotive manufacturing-Suntop

Automotive manufacturing

In the automotive industry, fiber laser cutting machines are used to cut and process various automotive parts, such as: body frames, parts brackets, bumpers and so on.


Aerospace-Suntop

Aerospace

In order to meet the high precision and high strength material cutting needs, fiber laser cutting machine is used in the field of aerospace, suitable for: aircraft structural parts, missile and satellite parts, aviation equipment, etc.

Advertising and signage-Suntop

Advertising and signage

Fiber laser cutting machines are used to make various advertising signs, signboards and display props, which can realize complex fonts and patterns cutting, and are widely used in: commercial advertisements, store signboards, exhibitions and displays.

Appliance manufacturing-Suntop

Appliance manufacturing

In the home appliance industry, various metal casings and components are manufactured by fiber laser cutting machines, such as: refrigerator casings, washing machine panels, air conditioner casings, etc.


Construction and decoration-Suntop

Construction and decoration

In the construction industry, fiber laser cutting machine can quickly cut out a variety of complex shapes of metal decorative parts, such as: iron railing, metal curtain wall, creative metal devices.

Medical equipment-Suntop

Medical equipment

In the medical equipment industry, fiber laser cutting machines are used to manufacture high-precision and complex medical equipment parts, such as: instrument housings, surgical knives, etc.

Crafts and gifts-Suntop

Crafts and gifts

High-precision fiber laser cutting technology is suitable for the production of exquisite handicrafts and customized gifts, such as: exquisite engraving, cutting artwork, customized souvenirs and so on.


Laser cutting machine is gradually replacing the traditional cutting technology and becoming an indispensable and important equipment in industrial production due to its high precision, good efficiency and flexibility. Click here to contact Suntop Laser today to learn more about laser cutting.

Laser Cutting Machine Video





How to Choose Laser Cutting Machine?

Choosing the right laser cutting machine is an important decision to ensure processing efficiency, cutting quality and return on investment. Here are some important factors to consider when choosing a laser cutting machine:


1. Material type

Determine the type and thickness of the materials you mainly cut (such as metal, non-metal, composite materials, etc.).

Different laser types (such as CO2 laser, fiber laser, etc.) have different applicability to different materials. Choose a laser cutting machine suitable for the required materials.


2. Cutting thickness and accuracy

Confirm the thickness range of the material you need to cut and find out the cutting capacity of the laser cutting machine within this thickness range.

According to the design requirements of the product, choose equipment that can achieve the required accuracy.


3. Laser type

CO2 laser: suitable for cutting non-metallic materials such as wood, acrylic, paper, etc.

Fiber laser: more suitable for metal cutting, such as stainless steel, aluminum, etc., with higher energy utilization and faster cutting speed.


4. Cutting speed

Consider the production speed requirements and choose equipment with fast cutting capabilities to improve production efficiency.

The actual cutting speed should refer to the parameters of the equipment and combine with the production needs of the customer.


5. Work area size

Choose the appropriate workbench area and cutting range according to the maximum size of the workpiece.

Consider the layout of the equipment and the spatial coordination with other production equipment.


6. Automation level

Consider the automation level of the equipment, such as whether it has an automatic loading and unloading system, autofocus, intelligent control and monitoring functions.

Although the initial investment of highly automated equipment is relatively large, it can improve work efficiency and reduce labor costs.


7. Brand and after-sales service

Choose reputable manufacturers and well-known brands to ensure equipment quality and technical support.

Consider the coverage and response time of after-sales service to ensure that problems can be solved quickly when the equipment fails or is repaired.


8. Budget

Clearly define the budget range and make a reasonable assessment based on price and performance. In addition to the price of the equipment itself, it is necessary to consider the operation and maintenance costs, consumables costs and training costs.

Choose cost-effective equipment within an affordable range.


Choosing the right laser cutting machine is a comprehensive decision. The above factors can be used as a reference to help you find the equipment that best suits your production needs. Click here to contact Suntop Laser today for a free laser cutting test.

Why Choose Suntop Laser?

There may be several reasons for choosing Suntop Laser as a brand of laser cutting machine, here are some common benefits and features that may make you consider choosing this brand:


High quality equipment-Suntop

High quality equipment

Advanced technology: Suntop Laser is committed to utilizing the latest in laser technology and innovative designs to provide efficient and accurate cutting solutions.

Durability and Reliability: Its products are often known for their high-quality materials and precision manufacturing processes, ensuring that the models are durable and stable in operation.

Wide range of application scenarios-Suntop

Wide range of application scenarios

Diversified material cutting: Suntop Laser's equipment is suitable for cutting a wide range of materials, including metal, wood, plastic, etc., to meet the needs of different industries.

A variety of models to choose from: According to the market demand, Suntop offers a variety of models and specifications, which can provide customers with diversified choices.

Superior cutting performance-Suntop

Superior cutting performance

High speed and accuracy: Laser cutting machines usually have high cutting efficiency and accuracy, which ensures cutting quality and maintains excellent performance even when dealing with complex shapes.

High power options: Different power options are available to enable customers to choose according to specific cutting needs such as material type and thickness.


User-friendly operation-Suntop

User-friendly operation

Easy-to-use control system: Suntop's machines are usually equipped with a user-friendly interface, making operation easy and users can get started quickly.

Software compatibility: Compatibility with common design software contributes to a more efficient workflow.

Strong after-sales service-Suntop

Strong after-sales service

Technical Support: Provide comprehensive technical support and training to ensure that problems encountered by customers in the course of use can be resolved in a timely manner.

Maintenance and Service Guarantee: Good after-sales service and maintenance program can reduce the customer's operational risk.

Cost-effective-Suntop

Cost-effective

Reasonable price: Suntop Laser is usually competitive in price, providing good cost performance, so that customers can get a higher rate of return on investment.


Choosing a machine from Suntop Laser means that you are looking for a high-performance, highly reliable laser cutting machine that meets a wide range of cutting needs. In addition, good after-sales service and user support are key factors that set Suntop apart. Click here to contact Suntop Laser today and make sure you know exactly what you need before you buy so you can make the best choice.

FAQ

1. How can i place an order?

Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

For further discussion, it is better to contact us with WhatsApp / WeChat / email / phone, in case of any delays.


2. What kind of display we provide?

We have laser marking machine / laser welding machine / laser cutting machine / laser cleaning / CO2 laser cutting and engraving machine / laser accessories for you choose.


3. How about the warranty?

We have 2 years warranty and lifelong maintenance.


4. What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.


5. Is there a limit to the cutting thickness of a laser cutting machine?

Yes, the cutting thickness is affected by the model of the equipment and the type of laser. Generally, fiber laser cutting machines have a larger thickness processing range for metal cutting, while CO2 lasers are more suitable for non-metallic materials.


6. Is it difficult to maintain a laser cutting machine?

No, maintenance is relatively simple, mainly including regular cleaning of the laser, checking the optical path system, regular replacement of consumables, etc.


7. Is laser cutting safe?

Laser cutting is safe if the operating specifications and safety measures are strictly followed. Operators need to wear appropriate protective equipment, such as laser safety glasses, and follow the instructions for use of the equipment to avoid any potential dangers.


8. How long is the service life of a laser cutting machine?

The service life of a laser cutting machine is usually more than 10 years, depending on the brand of the equipment, maintenance, and frequency of use. The life of the equipment can be maximized through regular maintenance and reasonable use.
