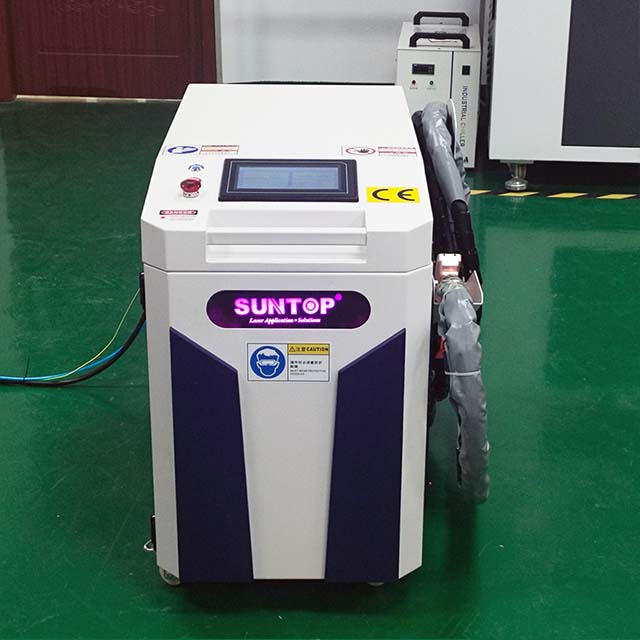

Suntop Handheld Laser Cleaning Machine

Details       Product Parameters       Samples       Video

Features of Suntop handheld laser cleaning machine

1. Integrated design, reasonable structure, dustproof, good heat dissipation, effectively prolong the service life of machine parts.

2. Handheld laser cleaning head, light and easy to operate, can work for a long time.

3. Intelligent control system, clear and concise interface, easy to operate, can set various parameters to achieve control of the laser.

4. 10 meters original optical cable, universal big casters, can move left and right, convenient to clean objects that are not easy to move.

5. Built-in cold water design, avoid wire bondage, adapt to more working conditions and places, good dustproof and anti-condensation effect.

6. with multiple safety alarm functions, high security, to ensure the absolute safety of the operator at work.

Details of handheld rust removal laser

1. Laser cleaning head

Light weight only 0.7KG, flexible and convenient to clean metal parts of any shape, with a wide cleaning width, up to 300mm. Equipped with a safety monitoring system.

2. Operation interface

Advanced resistive touch screen with higher sensitivity, intelligent control, supports multiple languages (English, Spanish, German, Italian, French, Russian, Turkish, etc.)

3. Laser source

We use a customized 45um core diameter cleaning fiber laser with a lifespan of 100,000 hours and maintenance-free.

4. Water chiller

Double circulating water cooling makes the laser source and cleaning head cool better, and the temperature control sensor adopts imported brands.

5. Cleaning connection fiber

The cable distance from the laser cleaning head to the machine is 10 meters, and there is no need to move the machine when laser welding the workpiece.

6. Wide range of cleaning

The maximum cleaning area is 300*300mm, and the efficiency is high.

Advantages of Suntop handheld laser cleaning machine

1. Non-contact cleaning, no damage to the workpiece

2. Precise positioning, selective cleaning, can apply the required cleaning area to the workpiece.

3. No chemical cleaning agent, no consumables. Safety and environmental protection.

4. Easy to operate, portable or equipped with automatic cleaning robot.

5. High cleaning efficiency, saving time and effort.

6. Stable laser cleaning system, maintenance-free.

Cleaning ability (only for reference)

Handheld cleaning head

● High cleaning cleanliness, big welding width up to 300mm.

● Precise positioning and cleaning, weight only 0.7KG, easy to hand it.

● Non-contact material when cleaning that can protect the material.

● Effectively remove micron-sized particles.

● Environment friendly, no consumables.

Suntop handheld laser cleaning machine safety features

ST-FC1000H/1500H/2000H is a Class IV laser system and routine precautions are required for the safe operation of the equipment.

Built-in features include:

● Key switch control of laser source and Emergency-stop button ensure deliberate operation.

● Fiber laser interlock verifies integrity of laser delivery to the cleaning gun.

● Laser clean gun trigger, enable and then fire, for intentional operation(Double pulling the trigger before the light comes out).

Compared to traditional cleaning

Suntop handheld laser cleaning machine application

Application materials

Suitable for removing resin, paint, oil stains, stains, dirt, rust, coatings, etc. from the surface of objects.

Application industry

Widely used in mold industry, automobile manufacturing, shipbuilding, food processing, sewage treatment, rubber tires, petrochemical industries, aerospace, electronic products, automobile manufacturing, track facilities, high-end machine tools, mold industry, food processing, shipbuilding, Military industry, medical treatment, cultural relics, etc.

Parameters of Suntop handheld laser cleaning machine
