Rechargeable Mini Handheld Laser Marker

Rechargeable Mini Handheld Laser Marker is a portable laser marking device designed for marking and engraving on various surfaces. This device is particularly suitable for mobile operations and a variety of application scenarios due to its compact design and charging function.
Product Model: ST-RFL20H
Laser power: 20W/30W
Working area: 70*70mm/110*110mm (optional)

Availability:

Quantity:



Inquire PDF Export

Product Description

Details Product Parameters Samples Video

What Is Rechargeable Mini Handheld Laser Marker?

The new handheld laser marking machine is based on the original one, achieving technological innovation and affordable price. The large battery, excellent heat dissipation and high-precision optical system ensure continuous full-power marking without heat accumulation, achieve sufficient power output, and greatly improve production efficiency. Equipped with an 8-core Linux system and an intelligent operation interface, it simplifies operation and easily handles various marking tasks. At the same time, it is equipped with an emergency stop switch for safe use. No matter what industry you are in, as long as you have marking needs, it can bring you unexpected surprises.

Working Principle

The laser beam is used to etch, oxidize, evaporate and other processes on the surface of the workpiece to produce a permanent marking effect. During the etching process, the handheld laser marking machine needs to control the size, shape, scanning speed and power of the laser beam to achieve the ideal marking effect. Combined with professional marking software, graphic typesetting, font selection, plate setting and other operations are performed to achieve a more accurate and beautiful marking effect.

Rechargeable Mini Handheld Laser Marker has become an important tool in the modern marking and engraving industry with its lightness, flexibility and high efficiency. With the development of technology, this type of equipment will be more and more widely used in all walks of life. Proper use and maintenance can achieve its optimal performance and bring better experience and value to users.

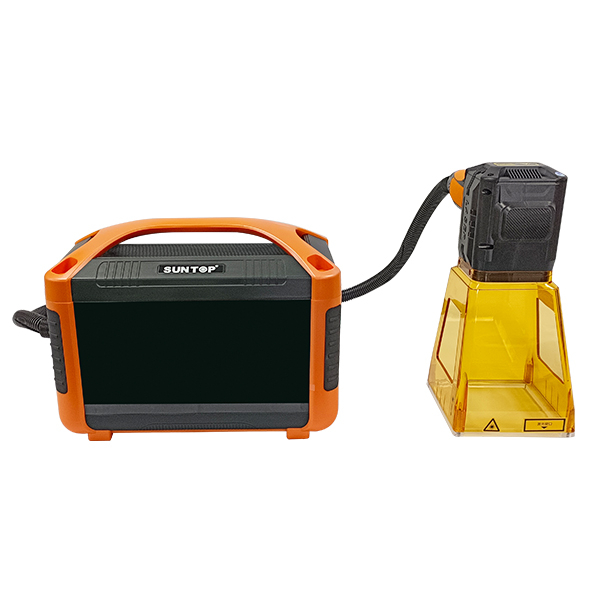

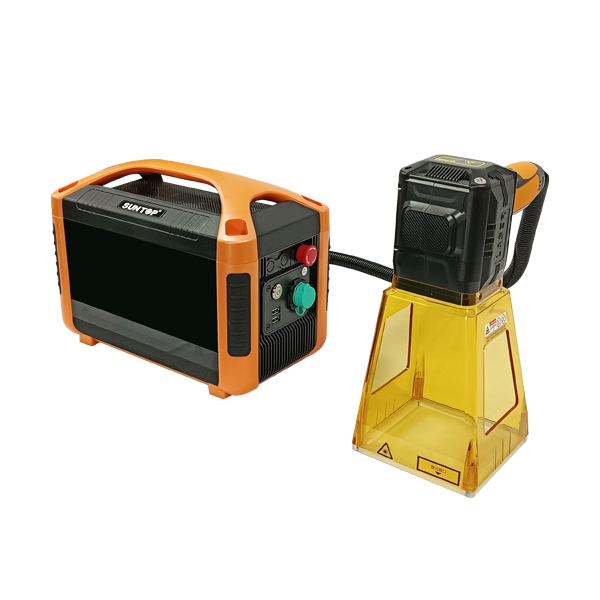

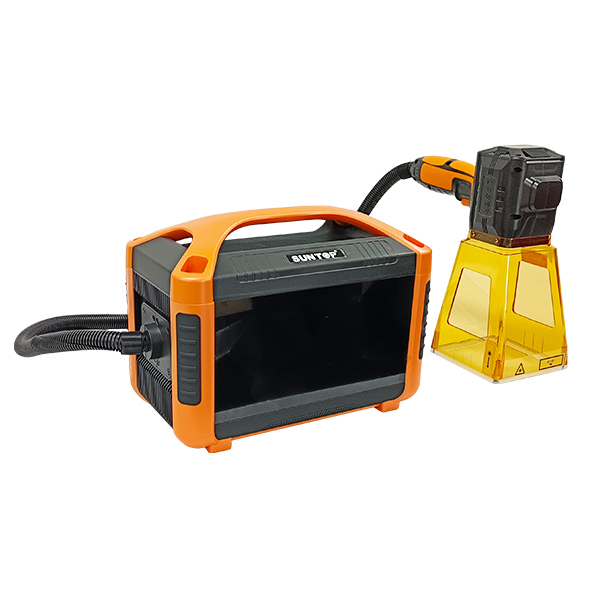

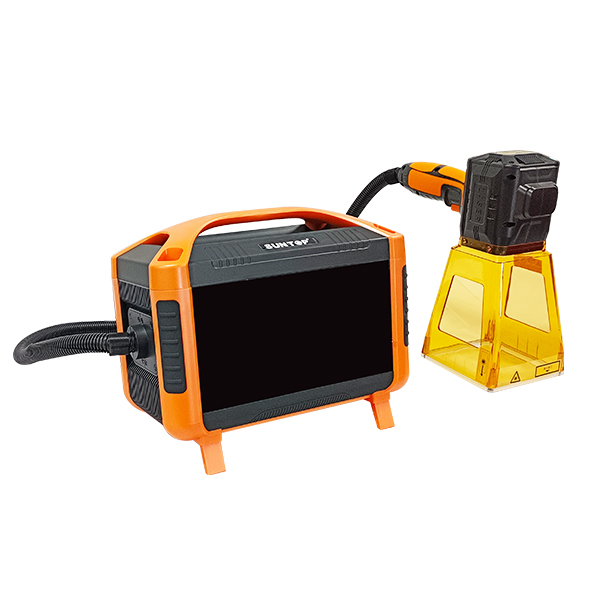

Product Appearance

Rechargeable Mini Handheld Laser Marker Appearance details-Suntop

Rechargeable Mini Handheld Laser Marker Appearance1-Suntop

Rechargeable Mini Handheld Laser Marker Appearance2-Suntop

Rechargeable Mini Handheld Laser Marker Appearance3-Suntop

Product Technical Features

● Body design, compact and light

The whole machine weighs 6KG, ergonomic

Ergonomic design, handheld operation, flexible operation.

● Light packaging, fast transportation

The whole machine equipment packaging is only 10KG at most

It can greatly reduce transportation costs, effectively reduce time costs and transportation costs.

● Price advantage, quality assurance

Provide high-quality quality at a reasonable price, making laser technology universal.

● One key touch screen, easy to operate

Configuration Linux operating system, can be operated by hand, more simple and smooth.

● Remove the battery, worry-free battery life

Equipped with 15000mA high-capacity detachable battery cell, easily lasts 6-8 hours.

● Infrared positioning, precise marking

Advanced laser technology is used to achieve fast focusing and high-precision marking.

Product Details

Rechargeable Mini Handheld Laser Marker Imported motor galvanometer-Suntop

Imported motor galvanometer

Utilizing imported motors for marking, this machine offers high precision, fast speed, and a good marking effec.

Handheld head

Adopts ergonomic design, rubberized and anti-slip technology, weighs only 0.8kg, compact and light.

Rechargeable Mini Handheld Laser Marker Handheld head-Suntop

Rechargeable Mini Handheld Laser Marker Smart touch screen-Suntop

Smart touch screen

No need for a computer, you can edit the marking content on the touch screen, which is very convenient to use.

Dual USB ports

Supports multiple file formats, import and read.

Rechargeable Mini Handheld Laser Marker Dual USB ports-Suntop

Rechargeable Mini Handheld Laser Marker Removable lithium battery design-Suntop

Removable lithium battery design

Battery/plug-in dual-use scenarios with no limitations.

Built-in air cooling

Better heat dissipation performance, effectively extending the life of optical components.

Rechargeable Mini Handheld Laser Marker Built-in air cooling-Suntop

Core Configuration

Handheld marking head

Rechargeable Mini Handheld Laser Marker Handheld marking head-Suntop

● High-quality galvanometer, field mirror and imported laser marking head, which greatly improves the beam quality, making the marking effect better and the quality higher.

● Equipped with intelligent red light positioning system, double insurance, hard-core positioning, stable performance.

● One-button trigger marking, the handle is equipped with a marking button, which can be moved anytime and anywhere, saving time and effort.

● Original optical cable overcomes the limitation of workbench space, and can realize outdoor marking and long-distance marking; adjust the position at any time, free and flexible, suitable for marking in various working environment scenes.

Independent dedicated control system

Rechargeable Mini Handheld Laser Marker Independent dedicated control system-Suntop

● Linux system

Equipped with 8-core processor, high security level; stable performance and fast response.

● Large color touch screen

8-inch fully laminated LCD screen, one-button trigger; one machine can be used for multiple purposes, and hardware diversification is compatible.

Multimodal working mode

Battery with removable design, with 2 batteries, easy unlimited battery life.

15000mA high capacity battery

Get rid of the socket, offline marking.

Marking and charging at the same time

Direct power cord use, charging while marking

Fast power change

Supports swap mode, battery removed for charging.

Plug and Play

Plug in and use immediately

Advantages of Rechargeable Mini Handheld Laser Marker

Rechargeable mini handheld laser marking machines have significant advantages in many application scenarios due to their unique design and functions. Here are some of the main advantages:

1. Portability

Lightweight design: Mini handheld laser marking machines are usually small in size and light in weight, easy to carry and operate, and suitable for a variety of on-site working environments.

Wireless operation: The rechargeable function allows operation in places without power outlets, which improves flexibility and adaptability.

2. Flexible operation

Handheld design: Users can freely adjust the angle and position of the laser marking machine, which is suitable for workpieces of various shapes and sizes, especially in places that are not easy to access.

Quick configuration: The handheld laser marking machine can be started and set up quickly, making task switching more efficient.

3. High precision and quality

Laser technology: Laser marking technology can provide high-resolution marking, making detail processing more refined and suitable for applications with precision requirements.

Durability: Laser marking marks are usually highly wear-resistant and corrosion-resistant, and can remain clear for a long time.

4. Multi-material adaptability

Widely compatible: The rechargeable mini laser marking machine can work on a variety of materials, including metal, plastic, rubber, label paper, etc., to achieve a variety of marking effects.

5. Environmental protection and safety

Pollution-free: The laser marking process usually does not produce a lot of waste or pollutants, which is relatively environmentally friendly.

Safety: Due to its non-contact processing characteristics, the risk of damaging materials during the marking process is reduced.

6. Cost-effectiveness

Low maintenance: Compared with traditional marking methods, laser marking equipment has low maintenance costs and high reliability.

High efficiency: The fast marking speed can improve production efficiency and save time and labor costs.

7. Intelligent regulation

Control system: Equipped with an intelligent control system, it can realize precise design and customized marking content through software, and is easy to operate.

Real-time feedback: The marking process can be monitored in real time to ensure the stability of marking quality.

8. Wide range of application fields

Multi-industry applicability: It can be applied to multiple industries such as manufacturing, art, medical, electronics, automobiles and construction to meet the needs of different customers.

Rechargeable mini handheld laser marking machine has become a popular marking tool in the market due to its portability, flexibility, accuracy and environmental advantages.Click to contact Suntop Laser for more details.

Product Specifications

Laser	Fiber laser generator	Positioning method	Red light positioning
Output power	20W / 30W	Number of lines of engraved characters	Any line within the effective marking range
Marking range	70×70mm / 100×100mm (optional)	Printing speed	800 characters (related to material and printing content)
Deflection mirror	High-precision 3D scanning system	Font	Chinese, English, numbers, traditional Chinese and other standard fonts
Laser wavelength	1064nm	File format	BMP, DXF, HPGL, JEPG, PLT
Focusing lens	F100 / F160	Barcode	CODE39, CODE128, CODE126, QR
Marking speed	≤12000mm/s, dot matrix font	Power supply	110V / 220VAC / lithium battery (216wh)
Master control	Integrated motherboard, 8-inch tempered capacitive screen	Power Consumption	145-250W
Operating system	Linux system	Operating temperature	0-40℃
Marking line type	Dot matrix, vector integrated machine	Weight of the whole machine	6~6.8Kg (plug-in version, lithium version)
Line width	0.03mm	Weight of the whole box	Power model 8.7Kg Battery model 9.7Kg
Repeat positioning accuracy	0.01mm	Outer packaging box size	520×415×305mm (L×W×H)

Extensive Marking Content

Rechargeable Mini Handheld Laser Marker samples1-Suntop

Rechargeable Mini Handheld Laser Marker samples2-Suntop

Rechargeable Mini Handheld Laser Marker samples3-Suntop

Rechargeable Mini Handheld Laser Marker samples4-Suntop

Rechargeable Mini Handheld Laser Marker samples5-Suntop

The system supports various marking contents: text (different font files can be added by yourself), patterns, QR codes, bar codes, excel files, etc.

Rechargeable Mini Handheld Laser Marker samples6-Suntop

Rechargeable Mini Handheld Laser Marker samples7-Suntop

Rechargeable Mini Handheld Laser Marker samples8-Suntop

Rechargeable Mini Handheld Laser Marker samples9-Suntop

Rechargeable Mini Handheld Laser Marker samples10-Suntop

It also supports marking of vector graphics such as PLT/JPG/DXF/BMP.

Support Various Materials Marking

Stainless steel

Aluminum

Brass

Carbon Steel

Iron

Paper

Plastic

Rubber

Lacquered label paper

Lacquered glass

Mini Handheld Laser Marker Video

Why Choose Suntop Laser?

Choosing Suntop Laser as a supplier of laser marking machines can be based on the following advantages and features:

Technological innovation

Suntop Laser has many years of experience in the field of laser technology and is committed to developing high-performance and high-precision laser marking machines. Its products usually use advanced laser sources and innovative optical systems to ensure the marking effect.

High cost performance

Suntop Laser's products usually have a strong cost performance in the market. Its equipment is reasonably priced while ensuring high quality, suitable for purchase by companies of all sizes.

Customized service

Suntop Laser can provide customized laser marking solutions according to the specific needs of customers. This flexibility allows customers to obtain equipment that best meets their business needs.

High-quality after-sales service

Suntop Laser provides comprehensive after-sales service, including equipment installation, training, maintenance and technical support. Good after-sales service can help customers get started quickly and reduce the impact of equipment failure.

Safety and reliability

Suntop Laser's equipment has been rigorously tested and certified to ensure that it meets industry standards in terms of safety and reliability. Long service life and low failure rate can ensure the continuity of production.

Global Market

Suntop Laser's products have been used in many countries and regions around the world. With an international background and vision, we can provide support to customers in various markets.

Choosing Suntop Laser as a supplier of laser marking machines can help your company improve production efficiency, reduce operating costs, and achieve higher quality product marking.Click to contact us now for more information.

FAQ

1. What are the main features of the rechargeable mini handheld laser marking machine?

This laser marking machine adopts a portable design and built-in rechargeable battery, which is convenient for on-site use. It is not restricted by power cords and the equipment is usually highly flexible.

2. Is it easy to use this laser marking machine?

Yes, the mini handheld laser marking machine is intuitively designed and easy to operate. It is equipped with a user-friendly interface and comes with a detailed operation manual to facilitate first-time users.

3. How is the marking effect?

With high-precision marking effect, it can achieve very detailed patterns, texts, barcodes and other markings, ensuring that the marking is clear and durable.

4. How is the charging time and battery life?

The charging time is usually a few hours, depending on the battery specifications and the output power of the charger. The battery life varies depending on the intensity of use and the laser power setting, and generally lasts for 6-8 hours.

5. What materials can this laser marking machine mark?

The rechargeable mini handheld laser marking machine is suitable for a variety of materials, including but not limited to metals (such as aluminum, copper, stainless steel), plastics, leather, wood and glass.

6. What is the marking speed?

The marking speed will vary depending on the material type and laser power setting. Generally speaking, handheld laser marking machines can achieve fast marking and are suitable for small batch production that requires high efficiency.

7. Do I need to wear protective equipment?

Yes, when using a laser marking machine, it is recommended to wear appropriate safety goggles to protect your eyes from laser beam damage. In addition, relevant safety operating procedures should be followed during operation.

8. What are the maintenance and care requirements of the equipment?

Regularly check the status of the laser marking machine, clean the lens and reflector to ensure smooth operation of the equipment. At the same time, follow the manufacturer's maintenance recommendations and update the software in time to avoid potential problems.

9. What is the product warranty and after-sales service?

We have 2 years warranty and lifelong maintenance.

Rechargeable Mini Handheld Laser Marker Mini Handheld Laser Marker China handheld laser marker best handheld laser marker handheld laser marker handheld laser marker company handheld laser marker cost handheld laser marker factory handheld laser marker for sale handheld laser marker manufacturer
