Full Enclosed with Dual Exchanged Table Laser Cutting Machine

Share to:

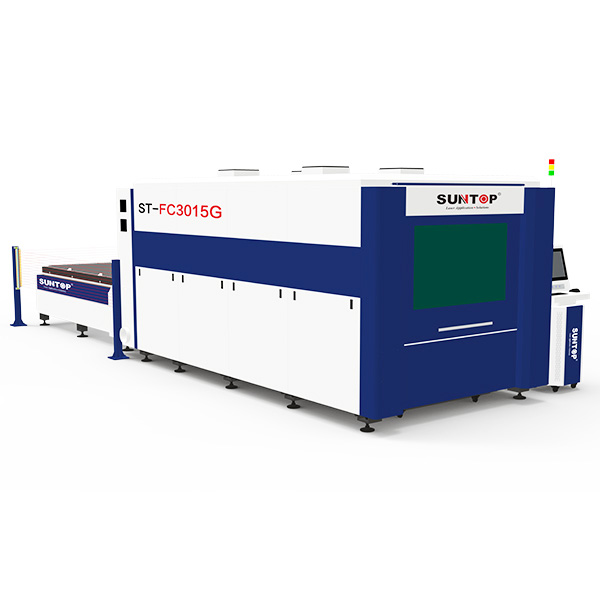

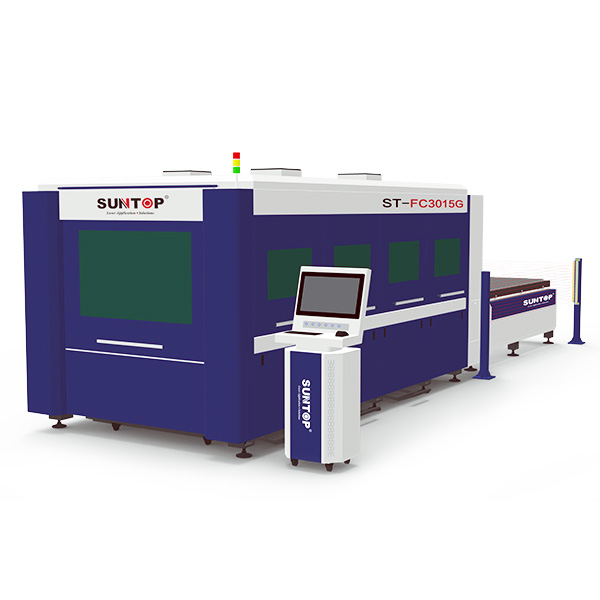

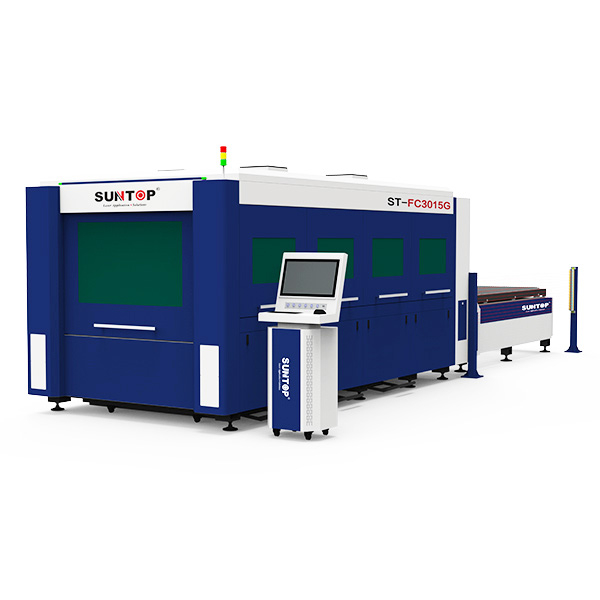

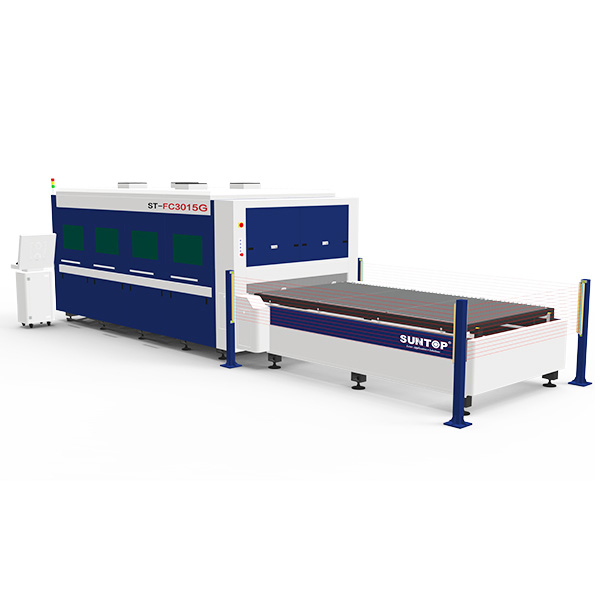

Full Enclosed with Dual Exchanged Table Laser Cutting Machine

Full Enclosed with Dual Exchanged Table Laser Cutting Machine is an efficient, modern laser cutting equipment designed to improve production efficiency and cutting accuracy. Its fully enclosed structure effectively reduces the spread of laser radiation and smoke, ensuring the safety of operators and reducing environmental pollution. The dual-exchange table design allows cutting to occur on one side while material is being loaded and unloaded on the other side, significantly reducing downtime and increasing productivity. In addition, the equipment is equipped with an advanced control system that enables precise cutting movements and is suitable for processing a variety of metal materials.
Product Model: ST-FC3015G/4020G/1560G/6020G/6025G
Laser power: 1500W-20KW
Working area: 1500*3000/4000*2000/1500*6000/2000*6000/2500*6000mm

Availability:

Quantity:



Inquire PDF Export

Product Description

Product Details Product Parameters Samples Video

Product Introduction

Laser cutting technology is an important processing method in modern manufacturing. Since its first commercialization in the 1960s, laser cutting technology has experienced rapid development and has become one of the mainstream technologies for metal, non-metal and composite material processing. With its high precision, high speed and high flexibility, laser cutting meets the increasingly complex industrial needs and is widely used in many fields such as automobiles, aerospace, construction, and advertising. With the continuous advancement of technology, equipment design has also paid more attention to safety and production efficiency, which has led to the advent of fully enclosed double-exchange table laser cutting machines.

As a new type of laser cutting equipment, the fully enclosed double-exchange table laser cutting machine combines the advantages of fully enclosed design and double exchange tables. This equipment can not only effectively protect the safety of the operator and prevent the spread of laser radiation and smoke, but also realize the efficient switching of cutting and material loading and unloading through the design of double exchange tables. This feature greatly improves the working efficiency of the production line, reduces downtime, and meets the urgent needs of modern manufacturing for rapid response and efficient production. With the increasing market requirements for high-quality cutting and environmental protection, fully enclosed double-exchange table laser cutting machines occupy an important position in the future manufacturing industry.

How Laser Cutting Works

The working principle of the fully enclosed double exchange table laser cutting machine can be summarized into the following key steps:

Laser generation: The laser (fiber laser) generates a high-energy laser beam.

Optical path transmission: The laser beam is guided to the cutting head through a reflector and a lens, and is focused on a very small spot during this process.

Cutting process: The focused laser beam irradiates the surface of the material, instantly generates high temperature, ablates the material and forms an incision, and uses auxiliary gas (such as oxygen or nitrogen) to improve the cutting effect.

Dual exchange table function: The two workbenches work alternately, one table is for cutting, and the other table is for loading and unloading, which improves production efficiency and reduces downtime.

Fully enclosed structure: The fuselage is fully enclosed, which effectively prevents laser radiation and smoke from leaking out, while ensuring the safety of operators and a clean environment.

Through these steps, the equipment can efficiently and accurately complete the cutting tasks of various materials.

Product Features

Fully Enclosed with Dual Exchanged Table Laser Cutting Machine has become an indispensable and important equipment in modern manufacturing industry with its high precision, high efficiency, multi-material applicability, high degree of automation, environmental protection and energy saving, strong flexibility, etc. It is widely used in various fields and promotes the development and progress of the industry.

1. Fully enclosed design, with air-conditioned room and dust isolation/automatic tracking smoke exhaust system, energy saving and perfect smoke exhaust effect. It can work continuously for 24 hours, effectively prolonging the service life of optical components and electrical components of the machine.

2. The mechanical transmission part has been tested and calibrated by the laser interferometer many times to ensure that our machine can maintain good and stable accuracy even after several years of use.

3. Monitoring system, cameras are installed on the front and rear workbenches of the machine, which can effectively monitor the working status of the workbench.

4. Using professional Raytools fiber laser cutting head, imported optical lens, smaller focusing spot, more precise cutting line, ensuring higher efficiency and better processing quality. Equipped with non-contact automatic follow function to ensure the best focusing and cutting effect.

5. Optical fiber transmission, flexible processing, to ensure the cutting quality at any point.

6. Professional laser CNC control system (Cypcut cutting software), computer operation, easier to operate.

7. Compatible with a variety of software, can design a variety of graphics or text instant cutting, simple, flexible and convenient operation

8. With intelligent discharge function, the material utilization rate is higher.

9. The machine can be equipped with automatic nesting function.

Product Details

1. Heavy duty machine tool

The whole machine is made of thick carbon steel structure, and the weight of single machine tool is up to 4 tons. The hollow structure of the high-power machine effectively reduces the heat area during the laser cutting process. The machine tool will not be deformed in long-term use, and also ensures good cutting accuracy, which greatly improves the stability of the machine. At least 20 years of use will not be deformed.

ss laser cutter tool-Suntop

2. 3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Open Type Dual Exchange Platform (ST-FC3015C)

3. Suntop patented design universal shaft drive exchange platform

Good synchronization performance, high exchange torque, strong overload resistance, long-term reliable operation without failure. Equipped with high power mid-mounted 3KW motor with brake system and hardened gear reducer, large torque output, symmetrical 80mm diameter universal shaft torque transmission, double 16mm chains to drag the table.

4. Imported original fiber laser source

Famous brand Raycus, IPG, MAX fiber laser, stable performance, service life can reach 100,000 hours, the overall quality of the equipment is guaranteed.

Open Type Dual Exchange Platform (ST-FC3015C)

5. Suntop laser cutting head lift (Z-axis)

Adopt closed module, fully sealed and protected, effectively prevent cutting dust and smoke from entering the module, avoid and reduce malfunction. Internal integration of ball screw and linear guide, etc., with high integration, small size and high operating accuracy.

ss laser cutter cutting head-Suntop

6. Stainless steel protective organ cover

It can effectively prevent the cutting sparks from burning the organ cover and fully and effectively protect the guide rack from mechanical dust and foreign objects.

7. Laser protection safety grating

When the machine exchange table is exchanged, once someone enters this area, the exchange action of the workbench will stop immediately.

Laser protection safety grating

8. CE-certified laser safety glass

Safety glass specially designed to protect personnel from laser radiation. It takes into account light transmittance so that the laser processing process can be observed while ensuring safety.

Laser protection glass

Advantages of Full Enclosed Fiber Laser Cutter

The fully enclosed double exchange table laser cutting machine has many advantages, mainly including the following aspects:

1. Improve production efficiency: The double exchange table design allows one machine to cut and load and unload at the same time, greatly reducing downtime and thus improving production efficiency.

2. Safety: The fully enclosed structure effectively isolates the laser radiation and smoke generated during the cutting process, ensuring the safety of the operator while reducing environmental impact.

3. Precision cutting: Laser cutting technology can achieve high-precision cutting, suitable for complex shapes and delicate patterns, and provide high-quality cutting edges.

4. Easy to operate: Modern control systems and human-machine interface design make operation simpler and more convenient, lowering the threshold for use.

5. Save labor costs: The high degree of automation reduces dependence on manual labor and further reduces labor costs.

6. Reduce material waste: High-precision cutting and reasonable layout strategies effectively reduce material waste and improve raw material utilization.

These advantages make fully enclosed double exchange table laser cutting machines increasingly popular in the manufacturing industry. Click here for more information

Product Specifications

Model	ST-FC3015G/4020G/1560G/6020G/6025G
Table Max. cutting size	15003000/40002000/15006000/20006000/2500*6000mm
Laser power	1500W-20KW
Transmission system	Double rack & pinion and servo drive
Transmission	High precision screw guide transmission
Laser wave length	1064nm
Laser source	Raycus Brand (MAX, IPG can be choose)
Maximum speed	120m/min
X.Y axis location accuracy	±0.01mm
X.Y axis repeat location accuracy	±0.01mm
X.Y axis max moving speed	30m/min (also according to kind of materials and thickness)
Cooling mode	Water Cooling
Maximum acceleration	1.5G
Equipment power	8KW (not include laser generator and chiller)
Working environment	0-45℃, Humidity ≤ 80%, non-condensing
Graphic format supported	AI, PLT, DXF, BMP, DST, DWG, DXP
Working voltage	380V±10%, 50-60HZ
Machine weight	8500KG
Machine dimension (LWH)	885032102100mm

Applications & Samples

Application materials

Suitable for stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheets and pipes.

Application industries

Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, crafts and gifts, tool processing, decoration, advertising, metal external processing and other various manufacturing and processing industries.

Open Type Dual Exchange Platform (ST-FC3015C)

Laser Cutting Machine Video

Why Choose Suntop Laser?

There may be several reasons for choosing Suntop Laser as a brand of laser cutting machine, here are some common benefits and features that may make you consider choosing this brand:

High quality equipment

Advanced technology: Suntop Laser is committed to utilizing the latest in laser technology and innovative designs to provide efficient and accurate cutting solutions.

Durability and Reliability: Its products are often known for their high-quality materials and precision manufacturing processes, ensuring that the models are durable and stable in operation.

Wide range of application scenarios

Diversified material cutting: Suntop Laser's equipment is suitable for cutting a wide range of materials, including metal, wood, plastic, etc., to meet the needs of different industries.

A variety of models to choose from: According to the market demand, Suntop offers a variety of models and specifications, which can provide customers with diversified choices.

Superior cutting performance

High speed and accuracy: Laser cutting machines usually have high cutting efficiency and accuracy, which ensures cutting quality and maintains excellent performance even when dealing with complex shapes.

High power options: Different power options are available to enable customers to choose according to specific cutting needs such as material type and thickness.

User-friendly operation

Easy-to-use control system: Suntop's machines are usually equipped with a user-friendly interface, making operation easy and users can get started quickly.

Software compatibility: Compatibility with common design software contributes to a more efficient workflow.

Strong after-sales service

Technical Support: Provide comprehensive technical support and training to ensure that problems encountered by customers in the course of use can be resolved in a timely manner.

Maintenance and Service Guarantee: Good after-sales service and maintenance program can reduce the customer's operational risk.

Cost-effective

Reasonable price: Suntop Laser is usually competitive in price, providing good cost performance, so that customers can get a higher rate of return on investment.

Choosing a machine from Suntop Laser means that you are looking for a high-performance, highly reliable laser cutting machine that meets a wide range of cutting needs. In addition, good after-sales service and user support are key factors that set Suntop apart. Click here to contact Suntop Laser today and make sure you know exactly what you need before you buy so you can make the best choice.

FAQ

1. How can i place an order?

Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

For further discussion, it is better to contact us with WhatsApp / WeChat / email / phone, in case of any delays.

2. What kind of display we provide?

We have laser marking machine / laser welding machine / laser cutting machine / laser cleaning / CO2 laser cutting and engraving machine / laser accessories for you choose.

3. How about the warranty?

We have 2 years warranty and lifelong maintenance.

4. What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.

5. What is the cutting accuracy of the equipment?

Laser cutting technology has extremely high cutting accuracy and can achieve complex and delicate cutting effects, which is suitable for high-demand processing needs.

6. How to operate a fully enclosed double-exchange table laser cutting machine?

Fully enclosed double-exchange table laser cutting machines are usually equipped with easy-to-use control systems and human-machine interfaces. Operators only need to follow the equipment instructions or manuals for basic settings and operations, and can get started after simple training.

7. What are the maintenance requirements for this type of equipment?

It is necessary to regularly maintain and inspect the laser cutting machine, including cleaning the laser head, regularly checking the optical path, and lubricating mechanical parts. For specific maintenance requirements, please refer to the maintenance manual provided by the equipment manufacturer.

8. How long is the payback period of a fully enclosed double-exchange table laser cutting machine?

The payback period varies depending on the industry and operating characteristics. Generally speaking, due to its high efficiency and low operating costs, the payback period is usually between several months and one year, depending on the output and production efficiency.

9 How to choose a suitable laser cutting machine?

The selection of a suitable laser cutting machine should be based on actual processing needs, material types, production scale, budget and other factors. In the meantime, you can consult the equipment manufacturer for professional advice.
