Fiber Laser Engraving Services

Fiber laser engraving services have the advantages of high precision, wide range of materials, durability, and efficiency. It is a powerful engraving tool that can meet the needs of different industries and application fields, helping customers achieve various creativity and personalized customization.
Product Model: ST-FL20FB/ST-FL30FB/ST-FL50FB
Laser power: 20W/30W/50W (optional)
Working area: 75mm*75mm/110mm*110mm/150mm*150mm/175mm*175mm/200mm*200mm/250mm*250mm/300mm*300mm
Availability:
Quantity:

PDF Export

Details        Product Parameters        Samples       Video

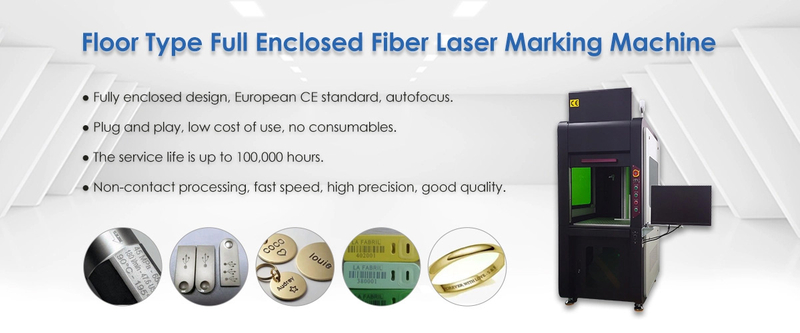

fiber laser engraving services features-Suntop


Features of fiber laser engraving services

1. Adopting high quality light source, good spot quality, uniform optical power density, stable output optical power, can realize precision processing.

2. Adopting original control EZCAD control card and software, supporting 2D and rotary marking, secondary development function, etc.

3. Scanning head built-in red light for preview marking position, easier and more accurate to find the laser focus.

4. Electro-optical conversion efficiency up to 28% or more, energy saving and power saving. Non-contact marking, no pollution, no noise, very environmentally friendly.

5. The machine can increase the auto-focus function, adjust the height of the laser focus according to the different heights of the products on the working table.

6. Suntop fiber laser marking machine has passed strict aging test before leaving the factory, the laser beam is continuously output for 24 hours to ensure 100% stability of the machine.


Details of fiber laser engraving services

1. Laser source

Good beam quality, stable performance, long service life (100,000 hours), maintenance-free. MAX, Rike, JPT and other brands can be selected.

2. High-speed scanning galvanometer

Adopting domestic and foreign first-tier well-known brands, fast speed, high precision, can work continuously in a variety of harsh environments.

3.F-theta lens

Intelligent F-theta lens, the fiber laser beam is focused to the surface of the workpiece through the lens with sufficient energy.

4.Red light positioning

Scanning with red light before marking, previewing the marking position in advance, identifying the positioning size, so that the marking position of each workpiece is accurate.

5. Warning light

Indicator light has two colors: "green" indicates that the machine is in normal state. "Red", the machine is abnormal.


fiber laser engraving services details-Suntop


Advantages of fiber laser engraving services

● High-precision and detailed display: Using high-energy-density beams for engraving can achieve high-precision and detailed description. Whether it is tiny fonts, complex patterns or fine lines, fiber laser engraving can be easily achieved and present a clear and precise engraving effect.


● Wide material adaptability: suitable for various materials, including metal and plastic. Whether it is to engrave logos, patterns, text or numbers, it can be engraved on different materials to meet various needs.


● Fast and efficient: It has the ability of high-speed engraving and can complete a large number of engraving tasks in a short time. This increases productivity and reduces waiting times.


● Durable and reliable: The markings are permanent and not easy to fade, wear or be affected by the environment. Engraved markings provide durability and traceability, helping to improve product quality and brand image.


● Flexibility and customization: Can be customized and adjusted according to customer needs to accommodate different shapes, sizes and material requirements. Whether it is personalized customized products or mass production, everything can be satisfied.


● Environmentally friendly: The light-contact engraving method does not require the use of chemicals or other harmful substances. It has the advantage of environmental protection and does not pollute the environment.


● Strong operability: very easy to operate and simple to use. Through the operation of professional and technical personnel, various engraving needs can be quickly realized.


Application materials of fiber laser engraving services

Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.


Application industry of fiber laser engraving services

Electronics and communication products, IC products, wires, cables, computer components and electrical appliances; all kinds of precision parts, hardware tools, instruments and meters, aviation and aerospace appliances; jewelry, clothing, instruments and meters, gifts, office equipment, brand signs, bathroom appliances ; Tableware, food, drinks, tobacco and wine, etc.


Parameters of fiber laser engraving services

Model

ST-FL20FB/ST-FL30FB/ST-FL50FB

Laser power

20W/30W/50W (optional)

Marking area

75mm*75mm/110mm*110mm/150mm*150mm/175mm*175mm/200mm*200mm/250mm*250mm/300mm*300mm

Laser wavelength

1064nm

Working accuracy

±0.002mm

Marking Depth

≤1.2mm

Minimum font for marking

0.15mm

Minimum character

0.2mm

Marking speed

0-7000mm/s

Operating system

Win7 and Win10/32 bit and 64 bit

Laser source

MAX Brand ( Raycus can be choose)

Repetition frequency

20-100KHz

Cooling mode

Air Cooling

Graphic format supported

AI, PLT, DXF, BMP, DST, DWG, DXP

Environmental requirements

Temperature: 10-35℃, Humidity: 5-75%

Working voltage

220V±10% 50/60 Hz

Applicable material

All metal (Stainless steel, Carbon steel, Brass,etc.) and some   plastic(ABS, PVC,PES, ETC.)

Optional Accessories to Purchase

D80 Rotating Shaft/ D57 Small Chuck/2D Table (X.Y direction)/ Cutting   Fixture

Net weight/gross weight (KG)

165kg /188kg

Machine dimension

860*992*1880mm (L*W*H)



fiber laser engraving services samples-Suntop
