CO2 Laser Marking Machine How To Achieve High Definition Marking Effect on Acrylic Material?

Views: 45     Author: Site Editor     Publish Time: 2025-04-16      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Table of Contents

1. Introduction

2. Significance of High-definition Marking

3. Key Factors in Achieving High Definition Marking

4. Professional Handling Tips

5. Post-processing and Optimization

6. Future Development Trends

7. Summarize


Introduction

1. Basic principle of CO2 laser marking machine


CO2 laser marking machine utilizes a high-energy laser beam generated by a carbon dioxide laser, which is focused onto the surface of the material through optical components to achieve precise marking, engraving or cutting. In the process of interacting with the material, the laser beam generates a localized high temperature, causing the material to evaporate or melt, thus forming the desired pattern, text or logo on its surface. Due to the high focusing and precise control of laser light, CO2 laser marking machine is able to achieve high definition marking effect on a wide range of materials.


2. Wide application areas of acrylic material


Acrylic is a highly transparent, lightweight, easy-to-process synthetic resin material that is widely used in many fields. The following are some of the main applications of acrylic:


Advertising industry: acrylic is commonly used to make outdoor and indoor signs, display racks and signage, which can effectively attract customers' attention due to its high quality transparency and good optical properties.

Gifts and crafts: acrylic can be laser marked and engraved into a variety of beautiful gifts, decorations and personalized goods with high artistic value.

Industrial marking: In manufacturing and industrial environments, acrylic is used as safety signs, warning signs and barcode labels to ensure the safety and effectiveness of production.

Home Decoration: Acrylic is also widely used in mirrors, lamps, furniture, etc. to add modernity and aesthetics.


Due to the efficiency and flexibility of CO2 laser marking machine, it becomes an ideal choice for marking and processing of acrylic materials, which can meet the needs of different industries for high quality marking and customization.

Significance of High-definition Marking

1. Why clear marking is important


Clear marking is a key factor in product design and production for the following reasons:

● Readability: Clear marking ensures that information (such as text, symbols and barcodes) is easy to identify, avoiding misunderstandings and potential safety hazards. Clear marking is even more important in situations where quick identification is required, such as industrial production and after-sales service.


● Aesthetics: High-quality marking enhances the overall visual effect of the product and makes it more attractive. Clear and exquisite marking can highlight the professionalism and uniqueness of the brand and bring a good first impression to consumers.


● Durability: High-definition markings usually have better durability and wear resistance, and are not easy to fade or fall off during use, thus maintaining their long-term visibility and integrity.


CO2 laser marking machine features-Suntop

2. Impact of high-definition markings on brand image and product quality


● Brand image: The brand's logo and visual communication are crucial to consumer cognition. High-definition markings give the brand a higher degree of recognition and trust, thereby enhancing consumers' loyalty to the brand and willingness to buy. Clear markings convey professionalism and high quality, giving brands a competitive advantage in a highly competitive market.


● Product quality: Precise and clear markings are often closely related to high-quality product quality. Consumers often regard high-definition markings as a reflection of product quality, reflecting the manufacturer's strict implementation of standards and process requirements. Therefore, clear markings can not only enhance consumer trust, but also strengthen the product's reputation and reputation.


● Market competitiveness: In a competitive market, the marking effect of a product can become an important differentiating factor between a company and other competitors. High-definition markings can attract the attention of the target audience and increase the market share of the product.


High-definition markings are not only crucial in terms of functionality, but also play a positive role in brand building and consumer experience. By adopting advanced laser marking technology, companies can not only improve the quality of markings, but also achieve significant results in improving brand image and market competitiveness.

Key Factors in Achieving High Definition Marking

In order to achieve high-definition laser marking, it is essential to consider multiple factors. Here are some key factors that affect the marking effect:


1. Laser parameter setting

The correct setting of laser parameters is the basis for ensuring that the laser marking machine achieves the best results.


● Laser power: Laser power directly affects the depth and clarity of the mark. Generally speaking, higher power usually produces deeper marks, but if the power is too high, it may cause the material to be burned and the edges to be blurred. Therefore, it is necessary to make appropriate adjustments according to the specific material and marking requirements.


● Speed: The speed of laser marking affects the integrity and fineness of the mark. Slower speeds allow the laser to focus on the surface of the material for a longer time, thereby achieving deeper and more detailed marks; but too slow speeds may cause excessive burning. Therefore, reasonable speed settings are essential to achieve ideal marking effects.


● Frequency: Frequency determines the emission rate of laser pulses. Higher frequencies are suitable for delicate markings, which can achieve smoother edges and clearer graphics. On the contrary, lower frequencies can be used for deep markings, but may result in a rough marking surface.


● The impact of different marking depths on the effect: The marking depth affects the readability and durability of the information. Although light marks are beautiful and non-destructive, they may fade over time, while dark marks are more wear-resistant, so the specific choice should be based on the use environment to make a reasonable judgment.


2. Optical component selection

The role of optical components in laser marking is indispensable, and choosing the right components can significantly improve the quality of marking.


● Lens: The lens of the laser marking machine determines the quality and focusing ability of the laser beam. High-quality lenses can reduce light loss, improve the focusing accuracy of the beam, and achieve a more refined marking effect. Choosing the right focal length and aperture size is also an important factor affecting performance.


● Focusing system: The quality of the focusing system is related to the focusing effect of the laser beam, which directly affects the clarity of the mark. The appropriate focusing distance enables the laser beam to form a minimum focus on the surface of the material, ensuring that the marking edge is sharp and the details are rich.

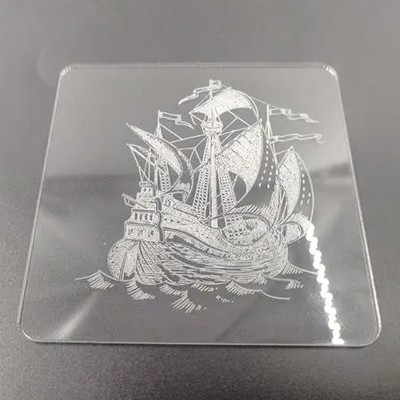

CO2 laser marking machine samples1-Suntop

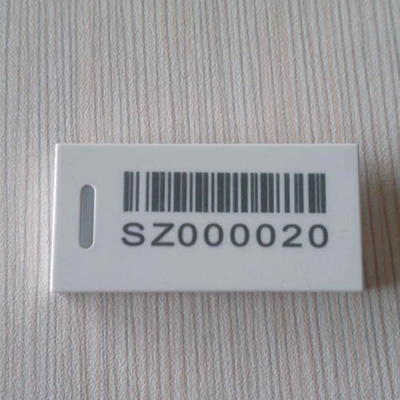

CO2 laser marking machine Sample2-Suntop

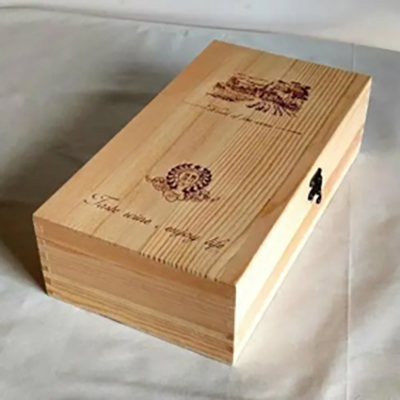

CO2 laser marking machine Sample5-Suntop

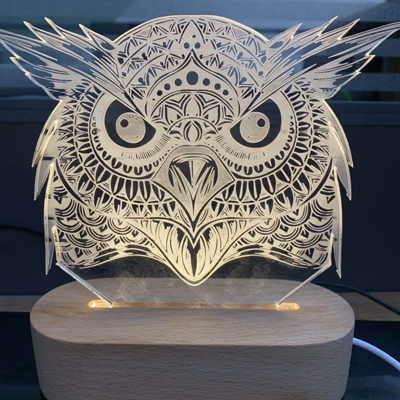

CO2 laser marking machine samples4-Suntop

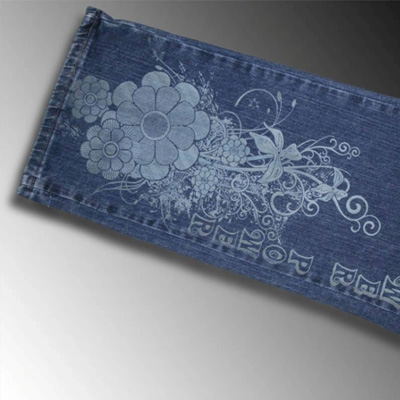

CO2 laser marking machine Sample3-Suntop

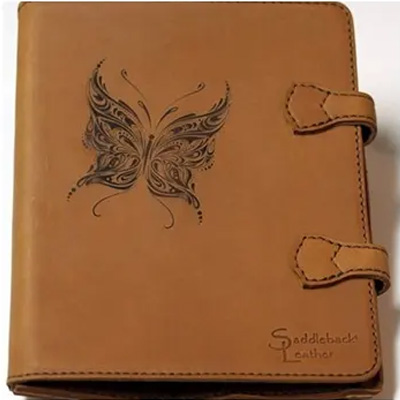

CO2 laser marking machine Sample6-Suntop

3. Marking mode selection

Different marking modes are suitable for different application scenarios, and reasonable selection can optimize the marking effect.


● Fill mode: Fill mode is usually used for patterns that require internal filling, such as icons, logos, etc. This pattern repeats itself in the same area, completely filling the outline to create a dense marking effect, suitable for applications that require high contrast.


● Contour mode: Contour mode is mainly used to mark edges or lines, and does not fill the entire area. It is more suitable for complex paths or detailed graphics. This mode performs well in speed and clarity, and can also leave clear edges on the material.


● Other modes: such as dot matrix mode, image mode, etc., according to specific needs, choose the corresponding mode to achieve the best effect.


After comprehensively considering these key factors, appropriate parameters and strategies can be formulated to achieve high-quality, high-definition laser marking effects, providing strong support for the market performance of brands and products.

Professional Handling Tips

When laser marking or cutting acrylic materials, the preparation and handling process are crucial to the final effect. Here are some professional operating tips to help you better handle acrylic materials.


1. Clean the acrylic surface

Cleaning is the first step to ensure the laser marking effect. Surface stains and scratches will not only affect the clarity of the mark, but may also cause laser reflection and uneven marking. Here are the steps to clean the acrylic surface:

● Material selection: Use non-abrasive cleaning materials such as microfiber cloths or lint-free cloths, and avoid using paper towels or rough cloths to reduce the risk of scratches.

● Cleaner: Choose a suitable cleaner. It is usually recommended to use a cleaning fluid specifically designed for cleaning acrylic, or mild soapy water. Avoid using alcohol, ammonia, alcohol or other strong acid and alkali cleaners, as these chemicals may damage the surface of acrylic materials.


● Cleaning steps:

Spray the cleaner on the microfiber cloth instead of directly on the acrylic surface.

Gently wipe the surface in a circular or straight line to remove dust and stains.

Rinse the surface thoroughly with clean water to avoid residual detergent.

Wipe again with a clean, dry cloth to ensure that there is no moisture on the surface and that the residue is completely removed.

● Inspection: After cleaning, check the acrylic surface for scratches or other defects to ensure the integrity of the material before laser marking.


2. Implement appropriate heat dissipation and cooling methods

During the laser processing process, acrylic materials are easily affected by heat, causing deformation and melting. Therefore, reasonable heat dissipation and cooling measures are very important. Here are some effective heat dissipation and cooling methods:


● Use air nozzles: During the laser operation, use air nozzles to blow cold air into the processing area to help reduce local temperatures and prevent overheating and deformation of the material. Ensure that the nozzle is properly positioned with the laser work head to maximize cooling efficiency.


● Reduce laser power: For thicker acrylic materials, the laser power can be appropriately reduced, while slowing down the processing speed to reduce the heat rise of the material, thereby reducing the risk of deformation.


● Set up a suitable processing environment: Ensure that the processing environment of the laser equipment is well ventilated, which can not only reduce the temperature of the material, but also help remove the smoke and gas generated during the processing, and improve the marking effect.


3. Perform regular inspections and maintenance

Regularly check the status of the laser equipment and the optical system to ensure that it is working properly to avoid the degradation of marking and cutting quality due to equipment problems. At the same time, ensure that the environment around the equipment is clean to reduce the direct impact on the processed materials.


The above processing and preparation techniques can significantly improve the quality of your operation when laser processing acrylic materials, and obtain more delicate and lasting marking effects.

Post-processing and Optimization

After laser marking, proper post-processing and optimization are important for improving the marking effect, enhancing the visual effect and extending the durability of the marking. The following are some practical post-marking cleaning, brightening and post-processing techniques.


1. Cleaning after marking

After laser marking, some dust, smoke or residue from processing may remain on the acrylic surface. The correct cleaning method can not only make the marking more beautiful, but also prevent dirt accumulation.

● Cleaning materials:

Use microfiber cloth, lint-free cloth or soft sponge.

Avoid using abrasive materials or paper towels to avoid scratching the marked area.

● Cleaning steps:

Gently wipe the marked area to remove residual dirt and smoke on the surface.

If there are stubborn stains, use a special acrylic cleaner or mild soapy water and wipe gently.

Wipe again with a dry cloth to ensure that there is no moisture and detergent residue.


2. Brightening treatment

Acrylic materials may require further brightening treatment after laser marking to improve the visibility and beauty of the mark.

● Use brightener:

After cleaning, you can apply a special brightener or polymer protector, which can enhance the gloss of the surface and improve the clarity of the mark.

Spray or apply the brightener evenly with a soft cloth, avoid excessive application, and ensure even coverage of the surface.

● Polishing:

For special marking effects, you can consider using acrylic polish. Using a soft polishing cloth, gently polish the marked area to make it smoother and improve the gloss.

Consider using an electric polisher, but be careful to maintain appropriate speed and force to prevent overheating or damage to the surface.


3. Use post-processing techniques to improve the marking effect

The effect and durability of acrylic marking can be further optimized through some post-processing techniques.

● Heat treatment:

Using a heat gun or heating equipment to slightly heat the marked area can help the material restore a certain gloss while reducing internal stress.

● Chemical etching:

For some applications that want to enhance the visual effect, the marked area can be treated with a chemical etchant (such as diluted hydrofluoric acid or a special plastic etchant) to enhance contrast and improve readability. Be careful when implementing this technique, make sure to do it in a well-ventilated area, and use appropriate protective equipment.

● Printed protective coating:

If the mark needs to be used for a long time, especially in an outdoor environment, consider applying a transparent protective coating on the mark to protect the marked area from UV rays, scratches and corrosion.

● UV coating:

UV light-curing coating can significantly improve the wear resistance of the surface and enhance the gloss and color saturation of the mark. First ensure that the surface is clean, then evenly apply the UV coating and cure it through a UV light-curing device.


Through the above post-processing and optimization measures, you can significantly improve the overall effect of laser marking on acrylic materials, making the mark clearer, more beautiful and more durable. Choosing the right post-processing method will give full play to the advantages of laser marking.

Future Development Trends

The development direction of CO2 laser marking technology will continue to evolve under the trend of high power, high speed, intelligence and automation. Future equipment will integrate multiple functions, not only providing marking, but also cutting and other processing to meet the needs of industrial production. In addition, environmental protection and sustainability will become key considerations, driving the technology to develop in the direction of low energy consumption and pollution-free. With the continuous emergence of new materials, the effect of laser marking is affected by the optical properties of the materials, and in the future it is necessary to optimize the laser parameters to improve the marking quality. The introduction of nanotechnology has the potential to change the surface structure of the material, thereby enhancing the contrast and durability of the marking. At the same time, combined with 3D marking technology, CO2 laser marking will be able to adapt to objects of complex shapes. With the integration of augmented reality (AR) and Internet of Things (IoT) technologies, the application of CO2 laser marking will be further expanded, providing products with richer information and functions, and improving user experience and the convenience of logistics tracking.


Summarize

The main points to achieve high-definition marking include selecting appropriate laser parameters, optimizing material properties, and mastering appropriate process technology. First, it is crucial to select the appropriate laser power, speed, and focal length to ensure that the marking quality is good and consistent with the characteristics of the material. Secondly, understanding the optical properties and reactions of the materials used can help optimize the marking effect, such as choosing different laser settings for materials of different colors and textures. Third, the use of advanced optical systems and high-standard production processes can further improve the clarity and durability of the marking. Finally, users are encouraged to actively explore and practice, and try different combinations of parameters and technologies to find the best marking solution. Through continuous experimentation and improvement, users will be able to achieve higher quality marking effects to meet diverse application needs.
