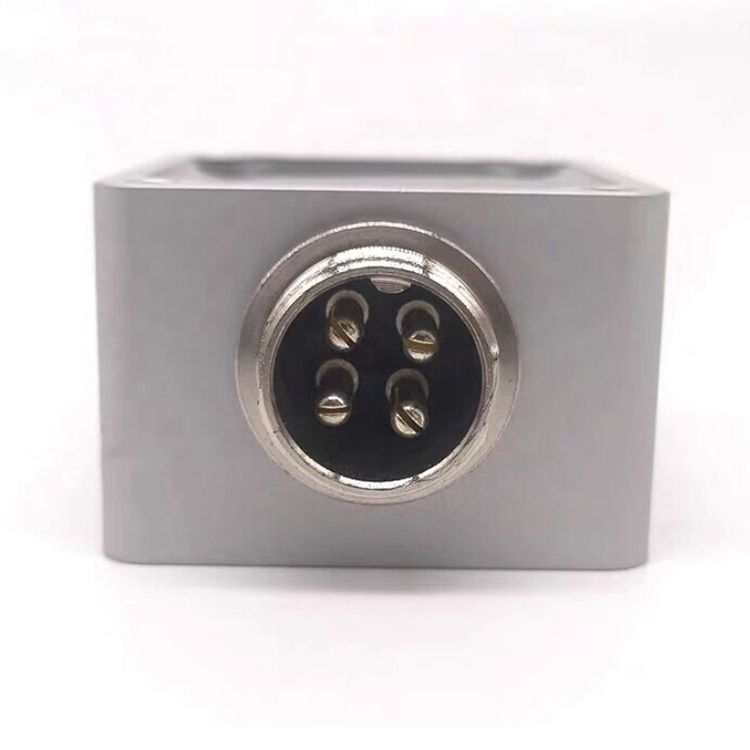

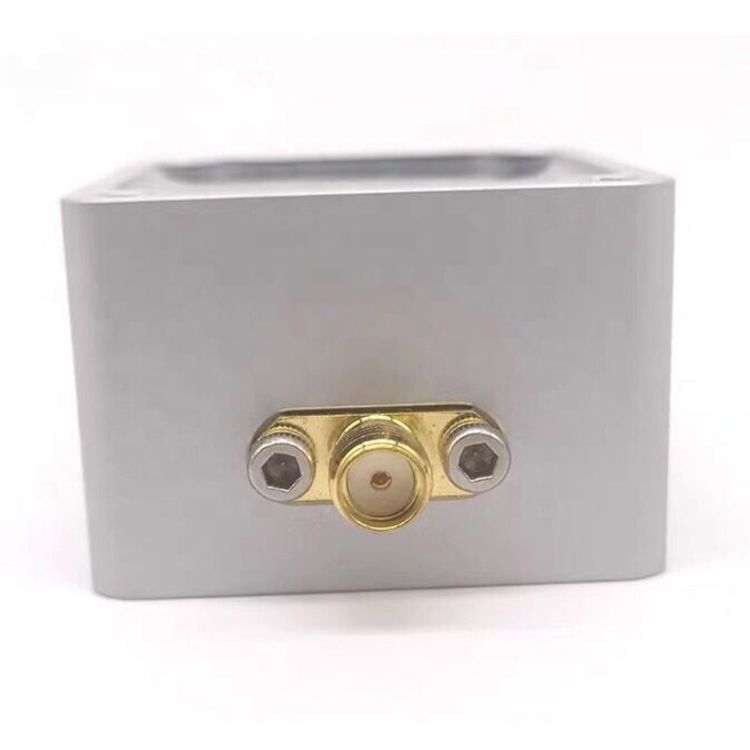

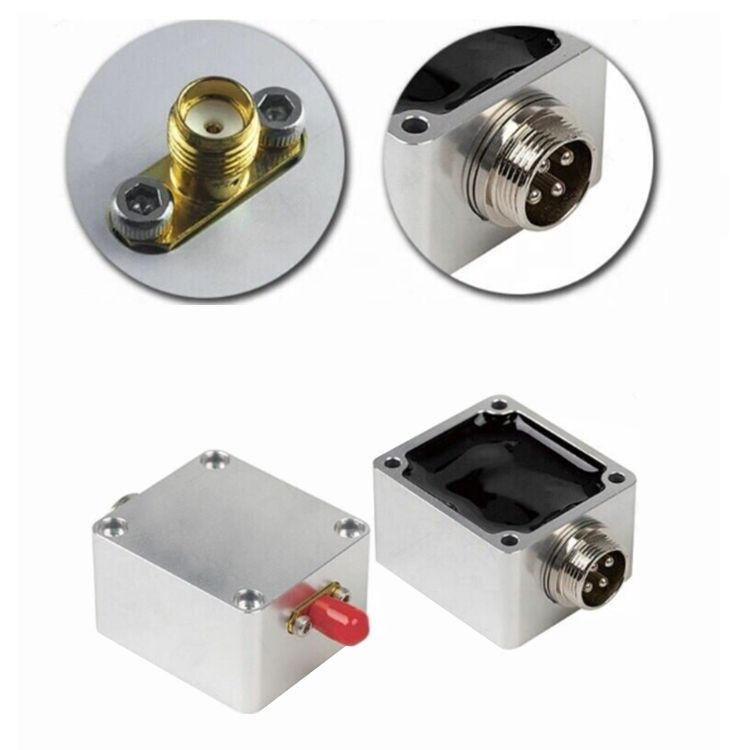

Capacitive Amplifier

Capacitive signal acquisition:

During the laser cutting process, the height of the laser cutting head needs to be kept at an optimal distance at all times to ensure the cutting quality and effect. The capacitive sensor is placed on the top of the cutting head to monitor the distance between the cutting head and the workpiece in real time by sensing the capacitive signal on the surface of the workpiece.

Signal filtering and amplification:

The collected capacitive signal is usually weak and noisy. The capacitive signal amplifier enhances the original signal to a level suitable for subsequent processing through signal filtering, amplification and other processing. This process usually includes filtering the high-frequency noise of the signal to improve the stability and reliability of the signal.

Signal transmission:

The amplified signal is sent to the height controller to provide accurate real-time distance information, ensuring that the control system can intelligently adjust the height of the cutting head based on the feedback data.

Signal coupling:

Capacitive amplifiers usually use capacitive coupling to introduce the sensing signal to the amplifier. This process removes the DC component and allows only the AC signal to pass, thereby achieving more accurate distance measurement.

Gain setting:

The gain of the amplifier can be set by resistors to adapt to different types of workpieces and cutting conditions. This flexibility allows the system to maintain high stability and accuracy in different working environments.

Feedback control:

The height controller achieves precise control of the laser cutting head in the z-axis direction based on a neural network or PID control algorithm. This precise control helps adjust the cutting speed and cutting power, thereby improving cutting quality and reducing material waste.

Capacitive amplifiers play a very important role in laser cutting control systems. It not only ensures accurate distance control between the laser cutting head and the workpiece, but also improves the reliability and efficiency of the control system by eliminating noise and enhancing signals. Through this efficient feedback control, the laser cutting operation can ensure the best cutting effect under different materials and cutting thicknesses.

1. High input impedance:

Capacitive amplifiers typically have very high input impedance, usually in the megaohm range. This allows it to interface with high-impedance signal sources without placing a significant load on the source.

2. AC signal coupling:

Signal coupling through capacitive elements effectively blocks DC bias and focuses on the AC component. This makes capacitive amplifiers suitable for transmitting AC signals without being affected by DC components.

3. Frequency response:

The frequency response of a capacitor amplifier can be designed very broadly and can be optimized for a specific frequency range. With proper design, good high and low frequency response can be achieved.

4. Miniaturization:

The structure of the capacitor amplifier is relatively simple and usually uses a small number of electronic components. Therefore, it can be designed to be relatively small and suitable for embedding in complex electronic systems.

5. Low power consumption design:

Capacitor amplifiers can be designed with low power consumption and are suitable for portable or circuit applications requiring high energy efficiency.
