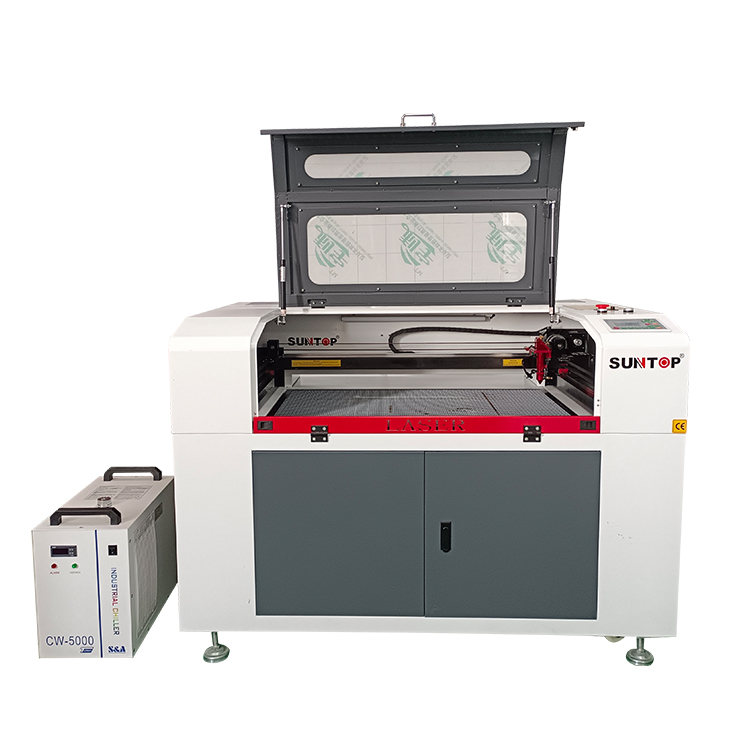

Acrylic Laser Cutting Machine

Details       Product Parameters       Samples       Video

Features of acrylic laser cutting machine

1. The control system uses the most cutting-edge DSP controller, and the mechanical system has stable performance.

2. Adopt three-way reflection system and linear guide structure, which makes the light knife run smoothly and engrave/cut with high precision.

3. Adopt touch screen to control the operation of laser machine, with large processing width, fast speed, simple procedure and easy operation.

4. Adopt imported laser and optical devices, with good spot quality, stable output power and low maintenance cost.

5. It can be equipped with different power CO2 lasers as standard according to different needs.

6. Double-head and multi-head cutting system can be selected according to customer requirements to improve production efficiency and reduce production cost.

Details of acrylic laser cutting machine

1. Adjustable laser head

The aluminum alloy adjustable laser head is lighter than other metal laser heads, which can minimize the inertia error when the laser head moves.  The outer oxide film has a beautiful appearance and is durable and not deformed for a long time.

2. CO2 laser tube

The speed of light is stable, the power is high, the cutting speed is fast, and the quality is good.

Laser tube life is 10,000 hours.

Laser power 60W/80W/100W/130W/150W/200W optional.

3. High precision linear guide

Adopt high-precision high-speed belt drive, long service life.

High speed and stability, low running resistance and low noise.

The incision is precise and the work efficiency is high.

4. Mirrors and lenses

Adopt foreign imported focusing lens and reflector, high efficiency and stability.

The focal length adjustment part makes it easy to find the center of the lens and find the correct focal length.

5. LCD control panel

Which can not only work without computer, but also connect to U disk, USB communication.

Multilingual control panel, convenience of operation control.

6. Stepper motor control system

Digital timing, analog quantum control laser power, small error, high repeatability, maintenance-free.

The possibility of realizing extremely precise positioning is guaranteed, and the mobile positioning mechanism runs smoothly.

Low noise, not easy to heat, safe and reliable.

7. Laser protective cover

When the cover of the machine is opened, the machine stops working to prevent accidental injury to the operator by machinery and lasers. Make sure that the operator will not be hurt by the laser beam and protect the operator's safety.

8. Precision water chiller

CW-5000 water chiller has a temperature display, which can prevent overheating and burning, and prevent the water circulation from being cut off.

9. Collection drawer

Facilitates easy collection and acquisition of cut objects.

It is convenient for cutting waste and flying dust to clean up.

10. Honeycomb workbench

The small holes of the honeycomb workbench have good support performance, firm structure, and will not deform during processing, and small workpieces can be placed on the workbench for processing.

Advantages of acrylic laser cutting machine

1. Non-contact processing, no mechanical extrusion or mechanical stress to the material, no damage to the surface of the processed parts, no deformation of the material.

2. Good cutting quality, smooth cutting surface, no burr, no secondary processing.

3. not affected by the shape of the workpiece, good flexibility of laser processing, can process any graphics.

4. Save running cost, maintenance-free, no consumables, save your post-maintenance cost.

5. Humanized operation, long-term operation without failure, fully meet the needs of continuous industrial work.

6. Comply with European CE safety standards, and equipped with induction door, when the laser is opened accidentally, it will stop automatically.

CO2 laser cutting thickness (only for reference)

Acrylic laser cutting machine application

Application materials

Suitable for all kinds of non-metallic materials, such as plastic,acrylic, jade, crystal, rubber,leather, organic glass etc.

Application industry

Widely used in acrylic signboards, plexiglass trophies, luminous characters, plexiglass display stands, transparent chassis, packaging boxes, craft gifts, furniture, leather clothing, model making, food packaging, pharmaceutical packaging, electronic components, communications, clocks, Glasses, printing plate making, shell nameplate and other industries.

Parameters of acrylic laser cutting machine
