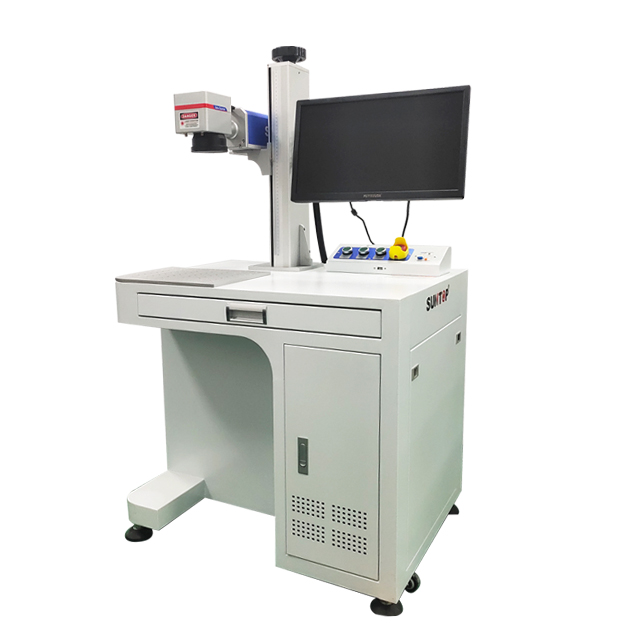

Features of color laser marking
1. Using Mopa laser, the spot quality is good, the optical power density is uniform, and the output optical power is stable.
2. Pulse frequency and pulse width are independently controllable, and can achieve stable high peak power output by matching with laser parameter adjustment.
3. The red light positioning system is adopted, which is convenient for positioning and has high positioning accuracy.
4. Air-cooled, easy to use and easier to operate.
5. Suntop fiber laser marking machine has passed strict aging test and can work continuously for 24 hours.
Details of color laser marking
1. Laser source
Using Mopa laser, it has a larger pulse width adjustment range and faster response speed. Frequency adjustable range up to 1-4000KHz.
2. High quality galvanometer
The high-speed digital galvanometer scanning head has good running stability and high positioning accuracy, which can realize high-speed marking and high precision.
3. F theta lens
Smart F theta lens, through which the fiber laser beam is focused to the workpiece surface, the energy is sufficient.
4. Control System
High-performance, high-reliability EZCAD control system, simple operation and higher stability.
Advantages of color laser marking
1. Non-contact processing, no product damage, no tool wear, good marking quality
2. Strong anti-counterfeiting, laser marking is clear and permanent, does not fade or fall off, and is not easy to be copied and changed.
3. Low cost of use, no wearing parts, no consumables, and maintenance-free.
4. The working speed is fast, which is 2-3 times of the traditional one.
5. Strong environmental adaptability, able to work continuously and normally in various environments.
Color laser marking application
Application materials
Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.
Application industry
Mainly used in stainless steel color marking, aluminum oxide blackening, stripping anode, stripping coating, semiconductor and electronics industry, plastic and other sensitive materials marking and PVC plastic pipe industry.
Parameters of color laser marking
Laser Power | 20W | 30W | 50W | 60W |
Model | ST-FL20 | ST-FL30 | ST-FL50 | ST-FL60 |
Max Marking Range | 110*110mm /150*150mm | 200*200mm | 300*300mm | 450*450mm |
Depth of Single Marking | 0.01mm | 0.03mm | 0.06mm | 0.07mm |
Same pattern marking efficiency | 10s | 7 s | 4s | 3s |
Whole Machine Power | 600W/h | 800W/h | 1000W/h | 11000W/h |
Laser Type | Fiber Laser |
Laser Source | Mopa |
Control Software | EZCAD |
Cooling Mode | Air Cooling |
Working Accuracy | ±0.002MM |
Marking Speed | 0-7000mm/s |
Repetition Frequency | 20-100KHz |
Laser Wavelength | 1064nm |
Minimum Font for Marking | 0.15mm |
Working Voltage | 220V±10% 50/60 Hz |
Graphic Format Supported | AI, PLT, DXF, BMP, DST, DWG, DXP |
Applicable Material | All metal (Stainless steel, Carbon steel, Brass,etc.) and some plastic(ABS, PVC,PES, ETC.) |
Spare Parts Come with the Machine | Protective glasses, Metal business card, Foot switch, Hex socket wrench, Power cord |
Optional Accessories to Purchase | D80 Rotating Shaft/ D57 Small Chuck/2D Table (X.Y direction)/ Cutting Fixture |
Net Weight (KG)/ Gross Weight | 120KG / 150KG |
Machine Dimension | 860*760*1130mm (L*W*H) |
