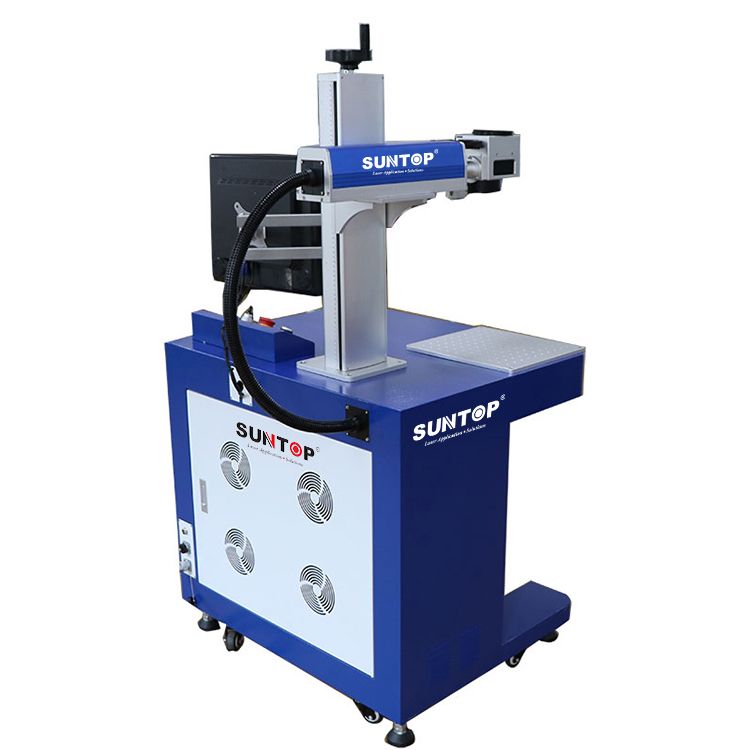

Cabinet Type Fiber Laser Marking Machine (ST-FL20B)

This kinds of laser marking machine with computer, big working table which suitable for big size products marking, can integrate the rotary device, we adopt the plug and play design.
Availability:
Quantity:

Product Details          Product Details         Samples       Video

 Cabinet type fiber laser marking machine features-Suntop

Fiber laser marking machine the main advantages:

1, Full-direction wheel & Adjustable foot convenient to move.

2, Long lifespan of fiber laser Generator: 100,000 hours;

3, High quality scanning galvanometer, with good seal, small volume and compact;

4, Original JCZ EZCAD software and control card, USB interface, swift and stable transmission;

5, High precision up to 0.0012mm, bring you the fantastic and satisfied marking effect;

6, Superior laser Berm: the definition is 1 micron, 10 times as that of the traditional marking machines;

7, No consumable parts, one fiber laser marking machine can work for more than 10 years without any consumables;

8, Fast speed: Max. marking speed up to 12000mm/s, which is 3 to 5 times than the traditional marking machines;

9, Contactless processing, no damage to materials, NO pollution, engery saving and environmental protection.

10, The fiber laser NO need to adjust the laser optical path, no need maintenance.

11, Machine scanner head with 2 built-in red light for preview marking position, easy and more exact to find laser focus.

12, Machine can add the Auto focus function for adjusting the laser focus height according to the different height products on the working table.

Cabinet type fiber laser marking machine details-Suntop

Application materials of the laser fiber marking and engraving machine:

Fiber laser marking machine can work with most metal marking applications, such as Pen, Stainless steel straw, Brass tube , Aluminium tube , Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon,etc.


Applicable Industries of cabinet fiber laser marking machine:

Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.

Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

Instrument: Panel Board, Nameplates, Precision equipment, etc.

Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.

Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.


Technical parameters for cabinet type laser marking machine:



Product name

laser marking machine

Cooling mode

Air cooling

Model

ST-FL20B/30B/50B/100B

Max. marking speed

≤12000mm/s

Laser source

MAX/RAYCUS/IPG

Max.line width

0.015mm

Laser power

20W/30W/50W/60W/100W (optional)

Min. character

0.2mm

Laser wavelength

1064nm

Pulse frequence

30KHZ-60KHZ

F-theta lens brand

wavelength

operation environment

5-45 degree

Marking area

110*110mm-600*600mm (depend on the actual laser power)

Power supply

AC110V/220V±10%, 50HZ or 60HZ

Control card

JCZ brand EZCAD

Operation system

Win XP/7/8/10 (32bit and 64bit)



Cabinet type fiber laser marking machine samples-Suntop
